• 4 Channels With Phono/Line Inputs
• 3-Band Isolator EQ
• External FX Loop With Dry/Wet Control Per Channel
• Independent XLR Master, and RCA Booth and Record outputs
• Touring Grade Build Quality

Overview

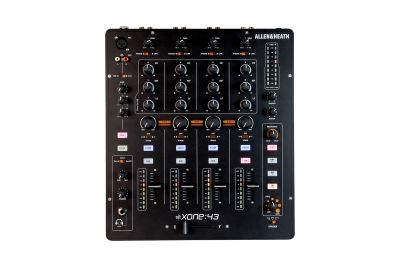

A 4+1 channel DJ mixer delivering the famous Xone analogue audio quality in a familiar layout for classic setups in clubs, bars and at home.

100% Analogue
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality.

The 43 features the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Analogue Isolator EQ
Each stereo channel features 3-band EQ with Total Kill on each band for precision sculpting of tracks, bassline swaps and creative transitions.

The Legendary Xone Filter
A freely assignable filter delivers all the power of the the legendary Xone VCF system with three modes – HPF, BPF and LPF – plus cutoff and resonance controls for complete control.

Add Your Favourite External FX
Xone:43 provides an FX loop with channel X:FX controls for a simple and intuitive way to integrate your favourite FX unit.

Faders For Your Mixing Style
The Xone:43’s crossfader has three switchable curve settings to suit your mixing style, and can be easily upgraded for ultimate crossfader performance.
The channel faders are designed for longevity and precision whether you’re in the club or in the lounge.

Tech Spec

4 channels with phono/line inputs
Xone:VCF filters
3-band isolator EQ
External FX loop with dry/wet control per channel
XLR mic input with 2-band EQ
Independent XLR Master, and RCA Booth and Record outputs
Touring grade build quality
Innofader compatible

Nom / max output levels
Main Mix
+4dBu +27dBu
Booth
0dBu +22dBu
X:FX Send
0dBu +20dBu
Record Out
0dBu +20dBu

Internal headroom Channels
+20dB

Frequency response
+/-0.5dB 20Hz - 20kHz

Distortion
< 0.05% THD+noise @1kHz

Crosstalk
< -83dB inter-channel

Residual noise
Mix 1 -89dBu
Booth -93dBu
X:FX -77dBu
Rec -92dBu

Mix noise
Mix 1 -82dBu
Booth -84dBu
X:FX -77dBu
Rec -87dBu

Channel meters
Peak reading 9 LED -20dB to +10dB

Main meters
Peak reading 9 LED -20dB to +10dB

Mic EQ
2-Band +/-12dB

Channel EQ
3-Band +6dB / total kill

Channel fader
45mm stereo VCA, < -85dB shutoff

Crossfader
45mm stereo VCA - replaceable

Filters
Stereo VCF, analogue

Consumption
30W max

Dimensions (W x H x D)
320 x 110 x 370 mm

Weight
Approx. 5.1 kg

Warranty: 1 Years
