• Four 4-band EQ mix channels
• Two 3-band parametric EQs
• Dual Xone:VCF filters
• 24 Channel 32-bit/96kHz soundcard
• Traktor Scratch certified

Overview

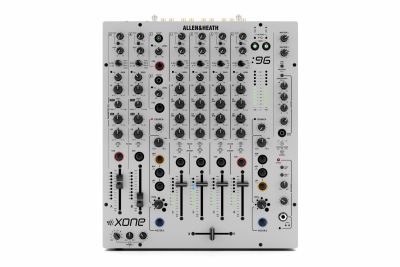

An uncompromising analogue DJ mixer, designed to be at the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

The follow-up to a genuine club classic.

It’s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers.

A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

You mixed. We listened.

Xone:96 draws on our rich heritage to create our most advanced analogue mixer yet, engineered from the ground up to deliver the legendary Xone analogue sound in the most flexible, powerful format.

Xone:92 users will feel instantly at home with the Xone:96’s layout. All four main stereo input channels feature the latest incarnation of our industry standard Xone 4-band EQ, the choice of countless international DJ artists.

Stereo Return channels A and B are fully-featured, and incorporate an all-new 3-band parametric EQ design, giving you even more control over how you style your sound.

Dual 32-Bit 24 Channel Soundcard

Studio Grade Interface

Unlock a world of creative possibilities. Xone:96 features two independent USB connections, each with 6 stereo inputs and outputs giving you a myriad of routing options.

State-of-the-art 96kHz/32-bit processing ensures the highest audio quality is passed between your laptops and the analogue engine.

Additionally the Xone:96 soundcard supports DVS control of Native Instruments’ TRAKTOR SCRATCH PRO 3 DJ software right out of the box.

Dual Xone VCF Filters with Crunch

Next Generation Filters

Nothing comes close to the sound and power of the Xone VCF filter. In Xone:96 we’ve refined this classic design, preserving its unmistakable sonic signature while taking its performance to the next level.

Alongside the classic HPF, BPF, LPF, resonance control and frequency sweep layout, there’s CRUNCH, a controlled harmonic distortion that sits pre-filter in the circuit to give you a powerful new effect.

Xone:96 lets you route all six main channels to either filter.

Booth Ready

Tuned for the Club

Xone:96 features two independent headphone CUE systems. Combined with the dual soundcard, these allow for back-to-back performances and smooth set transitions.

Dedicated booth outputs with 3-band booth EQ let you tune the monitor system perfectly, and artists using complex, hybrid, multi-channel software will benefit from the simplicity of using a single USB to connect their computer to Xone:96.

Total Connectivity

All the Ins and Outs

Xone:96’s rear panel is fully-loaded with I/O.

Alongside all the analogue connections you’d expect to find, DJs will welcome the addition of 2 stereo sends, 4 stereo returns and a dedicated master insert.

Send 1 is switchable from Line to Hi-Z level, making it ideal for incorporating instrument level effects, like guitar pedals.

X-Link allows you to hook up Xone:K series controllers to the Xone:96 for hands-on control over your software, saving USB ports on your laptop.

MIDI I/O is catered for via USB and 5-pin connection.

Built to Last

Premium Faders

Built to last, Xone:96 features custom-designed 60mm linear VCA channel faders. Perfectly balanced, they offer smooth performance and precise control.

In the crossfader position, Xone:96 comes equipped with the industry-favourite Innofader Mini, complete with fader cut adjustment for our sharpest cut ever.

Tech Spec

Four 4-band EQ mix channels
Two 3-band parametric EQs
Dual Xone:VCF filters
24 Channel 32-bit/96kHz soundcard
Traktor Scratch certified
MIDI & X:Link

Output Levels; Nom (0VU) / Max
MASTER 1 + 4dBu / + 24dBu
INSERT - 2dBu
MASTER 2 + 4dBu / + 18dBu
BOOTH + 4dBu / + 18dBu
RECORD - 8dBu / + 10dBu

Internal headroom
Channels + 20dB

Frequency response
LINE IN to MST out +/-0.5dB from 20Hz to 30kHz

Distortion
Typically 0.03% @ 1kHz 0dBu (THD+Noise 22Hz to 22kHz)

Crosstalk
< -85dB inter-channel @ 1kHz +10dBu

Residual Noise (22Hz - 22kHz)
MASTER 1 - 98dBu
MASTER 2 - 98dBu
BOOTH -101dBu

Mix Noise (22Hz - 22kHz)
Master 1 - 90dBu
Master 2 - 85dBu
Booth - 85dBu
Record RCA - 90dBu

Mic Gain
+40dB, EIN = -120dB (@ 40dB gain with 150R source)

RIAA Gain
+42dB @ 1kHz (6mV RMS= 0VU @ 1kHz)

Channel Meters
9 LED - 20dBu to + 10dBu

Master Meters
11 LED - 35dBu to + 10dBu

Channel EQ A/B
HI 3kHz + 6/-∞dB
PARAMETRIC 190Hz - 2.75kHz +10/-24dB
LO 180Hz + 6/-∞dB

Channel EQ 1-4
HI 3kHz + 6/-∞dB
HI MID 1.1kHz +10/-27dB
LO MID 350Hz +10/-27dB
LO 180Hz + 6/-∞dB

Channel faders 1-4
60mm VCA control individually replaceable
Plug in replacement - user replaceable [A&H spare-part#: 004-999X]
< -85dB shutoff @1kHz +10dBu

Cross-fader
45mm innoFADER VCA control.
Plug in replacement - user replaceable [A&H spare-part#: AI11470]

Filters
Dual, stereo, analogue Voltage Controlled Filters

Digital Architecture (USB) Specification
Analogue/Digital Line-up 0dBu = - 14dBFS
Audio Channels: 24 Channel (6 Stereo IN / 6 Stereo OUT),
Supported Variable Buffer Sizes: 32 / 64 / 128 / 256 / 512 / 1024 / 2048 / 4096 / 8192 samples
Supported Sample Rates: 44.1 kHz / 48kHz / 88.2kHz / 96kHz
Supported Bit depth: 16 bit / 32 bit
USB MIDI Channels: 2 x MIDI IN / 2 x MIDI OUT (USB 1 and USB 2)

Model
XONE:96

Type
Analogue

Channels
6 + 2

EQ
4-Band: CH 1- 4 ¦ 3-Band, Parametric: CH A/CH B

BOOTH
3-Band EQ ¦ STERO/MONO ¦ MUTE ¦ Level

USB Soundcards USB1 / USB2
2 x 24 Channel ¦ 12 in / 12 out [6 x Stereo pairs]
Hi-Speed USB2.0 [USB B] ¦ macOS Class Compliant [see p.24]
32bit / 96kHz
2 x MIDI IN
2 x MIDI Out

USB Inputs
2 x 6: [CH 1- 4 ¦ SEND1 ¦ MST/SEND2]

USB Outputs
2 x 6: USB1 / USB2 [CH 1- 4 ¦ CH A - D]

Phono Inputs
4 x RCA: CH 1- 4
LN/PH Switch for DVS

Earth Ground Terminals
x 2

Line Inputs
4 x RCA [CH 1- 4]
4 x 1/4" TRS [RTN A - D] Mono/Stereo

Mic Input
2 x XLR [MIC A / MIC B]

MST 1 Output
1 x XLR [Balanced]

MASTER INSERT
2 x 1/4" TRS [Balanced SEND / Un-balanced RETURN]

MST 2 Output
1 x 1/4" TRS [Balanced]

BOOTH Output
1 x 1/4" TRS [Balanced]

RECORD Output
1 x RCA [Un-balanced]

Send/Return I/O
2 x 1/4" TRS [SND1 / SND2] Mono/Stereo
4 x 1/4" TRS [RTN A - D] Mono/Stereo
1 x LN/Hi-Z Switch [SND 1 / RTN A]

Aux Sends
2 x CH 1- 4 + CH A, CH B [SEND1 selectable Pre/Post]

X-Link
1 x RJ45 Ethernet

Filters
2 x Stereo analogue Voltage Controlled Filters
HPF / BPF / LPF Response Select ¦ ON/OFF [soft switched]
Adjustable FREQ / RES / CRUNCH [Controlled Harmonic Signal Distortion]
Assignable CH 1- 4, CH A, CH B

Channel Faders
60mm linear Voltage Controlled Amplifier [CH1 - 4, user replaceable]

Chanel Meters
9 Segment LED

Channel Fader Curve
3 Types

X-Fader
innoFADER MINI standard ¦ 45mm linear VCA [user replaceable]

X-Fader Curve Settings
3 Types

MIDI Assignable
Yes: MIDI CC ¦ MIDI Note ON/OFF

MIDI Out
USB 1 / USB2 ¦ 1 x 5-pin DIN ¦ X:Link

MIDI In
USB 1 / USB2 [CUE ¦ ON/OFF ¦ MUTE]

Power Supply
Internal switch mode power unit [SMPS] with auto sensing mains input

AC Mains
100 to 240V AC ¦ 50/60Hz
Consumption 45W max
Rear panel mounted ON/OFF switch

Mains Adaptor
3 pin IEC socket with cable clamp. Molded AC plug [supplied]

Warranty: 1 Years
