• 8-inch subwoofer driver
• Integrated Class D amplifier delivers 200Wrms
• Both wired and wireless connectivity options
• Elegant high-gloss black painted finish
• Includes wireless transmitter module

Overview

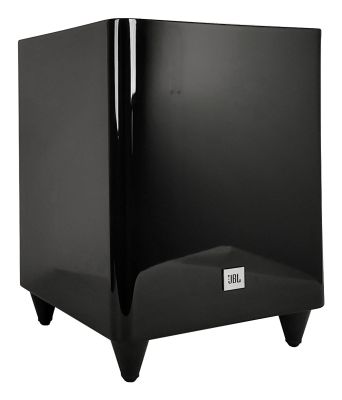

The SUB80P utilizes a down-firing 8-inch subwoofer driver housed in a compact sealed enclosure and includes features and connectivity ideal for simple integration into Hi-Fi music and multi-channel AV systems. The integrated Class D amplifier delivers 200Wrms system power with dynamic capability of 400W for powerful bass that brings your music and movies to life. System connectivity includes both wired and wireless options with the included 2.4GHz wireless transmitter that is small enough to place near audio components or behind a television.

Features and controls include rear-panel level control, crossover bypass switch, phase switch, bass boost, and auto power functions. Rear-panel Left/Right and LFE RCA jack inputs provide simple system connection for wired installations, while the wireless transmitter module includes Left/Right RCA jack connections. A 3.5mm 12V external trigger input is provided on the back panel of the subwoofer for use in custom installations in lieu of the auto-power functionality.

The SUB80P comes in an elegant high-gloss black painted finish and includes the wireless transmitter module, transmitter AC power supply, RCA-jack LFE signal cable, and 3.5mm 12V trigger cable accessories. “The SUB80P is a fantastic way to add extended bass response to any system and it comes with incredible ease of connectivity and complete placement flexibility,” said Jim Garrett, Senior Director, Product Strategy and Planning, HARMAN Luxury Audio. “With its small size and powerful response, it is the perfect addition to any music or movie system.”

Tech Spec

Low-frequency transducer
8″ (200mm) down-firing cone

Amplifier power
200 watts (continuous), 400 watts (peak)

Frequency response
45Hz – 200Hz (-6dB)

Controls
Volume, phase, bass boost

Connections
LFE (RCA-type); left and right line-level (RCA-type)

Enclosure type
Sealed

External trigger input voltage
3-30 volts, AC or DC

Subwoofer power requirement
120V, 60Hz (USA); 220V -240V, 50/60Hz (EU)

Subwoofer power consumption
<0.5W (standby); 243W (maximum, 120V); 261W (maximum, 230V)

Subwoofer dimensions (H x W x D)
13-29/32″ x 10-1/2″ x 10-1/2″ (353mm x 267mm x 267mm)

Subwoofer weight
19.8lb (9kg)

Transmitter power requirement
100-240V AC, 50/60Hz

Transmitter power consumption
<0.5W

Transmitter unit dimensions (H x W x D)
1-3/8″x 5″x 3-1/2″ (35mm x 127mm x 89mm)

Transmitter unit weight
0.26lb (117g)

Frequency Range
2403 – 2478MHZ

Max Transmitting power
1dBm

Operating Temperature
0 – 50°C

Warranty: 3 Years
