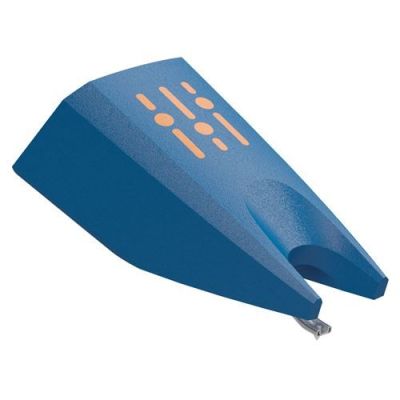

Ortofon Concorde MkII DJ

Replacement Stylus

Play All Samples

Description

keyboard_arrow_up keyboard_arrow_down
Manufacturer
Ortofon
Category
Replacement Stylus
Sold As
Each
Colour
Blue
MR776952
£45.00
In stock
Insured UK Shipping from £3.24
Worldwide Shipping Calculated at Checkout
  • Of the MKII range, the CLUB boasts the best specifications and best sound
  • Ideal for Club DJs in any environment: studio, broadcast or club
  • Special-Elliptic stylus that allows for detailed sound quality
  • Offers an outstanding platform for archival and sampling
  • The MKII series has a new body design and will not fit previous models


Overview



Excellent groove handling

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling.

The DJ is great for any style of music.
It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity.
Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

All in all:  improved tracking, alongside of accurate sound reproduction and an excellent groove handling.



Tech Spec



Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance -  700 Ohm
Internal inductance -  450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-600 pF
Cartridge weight - 18,5 g



Warranty: 2 Years
