• Special Elliptical diamond
• Perfect for usage in clubs, superb sound quality
• No-nonsence performer with fascinating musical resources
• Frequency response rating high enough to compare the Nightclub E to any audiophile cartridge

Overview

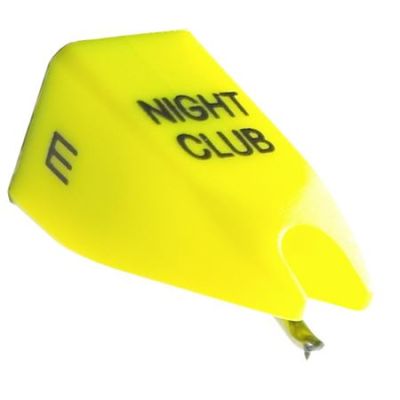

Nightclub E is equipped with Special Elliptical diamond. Perfect for usage in clubs. Superb sound quality.

Club DJs and studio workers believe the Nightclub E to be an absolute high-end cartridge. It is indeed a no-nonsence performer with fascinating musical resources.

It's output is superb with a frequency response rating high enough to compare the Nightclub E to any audiophile cartridge.

The special elliptical stylus guarantees sound with insignificant scratching.

Tech Spec

Output voltage at 1000Hz, 5cm/sec. -   8 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz  -  23 dB
Channel separation at 15 kHz  -  15 dB
Frequency response  -  20-20.000 Hz +/- 1.5 dB
Tracking ability at 315 Hz at recommended tracking force -   65 μm
Compliance, dynamic lateral  -  20 μm/m N
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 μm
Tracking force range  -  2.0-5.0 g (20-50 mN)
Tracking force recommended  -  3.0 g (30 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  1000 Ohm
Internal inductance -   580 mH
Recommended load resistance  - 47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde cartridge weight  - 18.5 g

Warranty: 2 Years
