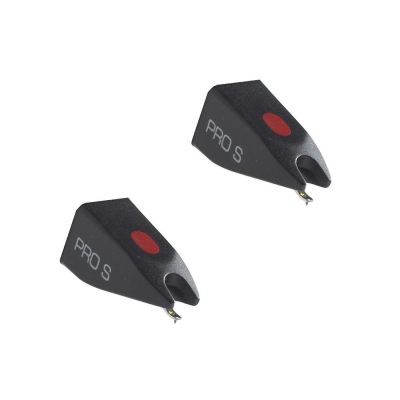

Ortofon PRO S

Replacement Stylus (Pair)

Play All Samples

Description

keyboard_arrow_up keyboard_arrow_down
Manufacturer
Ortofon
Category
Replacement Stylus
Sold As
Pair
Colour
Black
MR776981
£57.90
In stock
Insured UK Shipping from £3.24
Worldwide Shipping Calculated at Checkout
  • Entry-level cartridge is perfect for newcomers on the DJ scene
  • Spherical diamond stylus
  • Solid cantilever which can survive hectic activity at the turntable
  • Remarkable versatility for virtually any setting
  • The sound quality is absolutely not to worry about


Overview



The Pro S entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable.

No matter what the application, the Pro S provides remarkable versatility for virtually any setting.

The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Can be used to replace the Ortofon 5E stylus.



Tech Spec



Output voltage at 1000Hz, 5cm/sec.  -  5 mV
Channel balance at 1kHz  -  2 dB
Channel separation at 1kHz  -  20 dB
Channel separation at 15 kHz  -  15 dB
Frequency response   -  20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force  -  70 μm
Compliance, dynamic lateral  -  7 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range  -  3.0-5.0 g (30-50 mN)
Tracking force recommended  -  4.0 g (40 mN)
Tracking angle  -  20°
Internal impedance, DC resistance  -  750 Ohm
Internal inductance  -  450 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  200-600 pF
Concorde / OM cartridge weight  -  18.5 g / 5.0 g



Warranty: 2 Years
