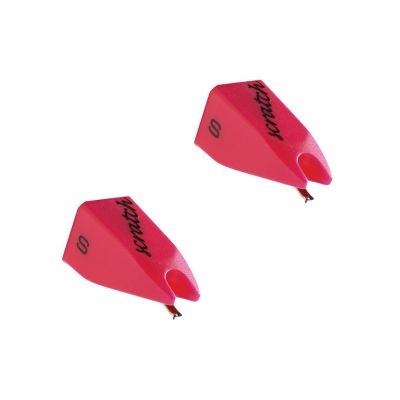

Ortofon Scratch MkI

Replacement Stylus (Pair)

Play All Samples

Description

keyboard_arrow_up keyboard_arrow_down
Manufacturer
Ortofon
Category
Replacement Stylus
Sold As
Pair
Colour
Pink
MR777154
£92.00
In stock
Insured UK Shipping from £3.24
Worldwide Shipping Calculated at Checkout
  • Scratch is intended especially for the disciplines of scratch and back-cueing
  • Highly apparent in spotlight and luminous in ultraviolet light
  • Reinforced rubber suspension
  • Solid bass reproduction and extended highs


Overview



As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing.

It is made of a fluorescent neon-red material with the intention it becoming highly apparent in spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.

Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Very high output! Maximum scratch performance guaranteed!



Tech Spec



Output voltage at 1000Hz, 5cm/sec. - 7 mV
Channel balance at 1kHz -  1,5 dB
Channel separation at 1kHz  - 25 dB
Channel separation at 15 kHz  - 15 dB
Frequency response  - 20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force -  80 μm
Compliance, dynamic lateral  -  6 μm/m N
Stylus type -  Spherical
Stylus tip radius -  R 18 μm
Tracking force range -  3.0-5.0 g (30-50 mN)
Tracking force recommended - 4.0 g (40 mN)
Tracking angle  - 20°
Internal impedance, DC resistance -  750 Ohm
Internal inductance  - 450 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-600 pF
Concorde cartridge weight  - 18.5 g



Warranty: 2 Years
