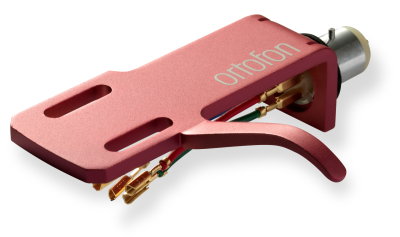

Ortofon SH-4

Headshell

Play All Samples

Description

keyboard_arrow_up keyboard_arrow_down
Manufacturer
Ortofon
Category
Headshells
Sold As
Each
Colour
Red
MR777220
Unavailable
Insured UK Shipping from £3.24
Worldwide Shipping Calculated at Checkout
  • High-quality, solid headshell for variety of applications
  • Ergonomic design with a long finger that is easy to pick-up
  • Gold plated wire terminals
  • Leadwires included
  • Five colours available


Overview



Ortofon SH-4 headshells are high-quality, solid headshells for variety of applications

The SH-4 headshell has an ergonomic design with a long finger that is easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible.
The wire terminals on the rear side are also gold plated for better signal transmission.

The SH-4 comes with leadwires for easy and convenient connection

All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Ortofon SH-4 headshell PINs and Ortofon cartridges' terminal PINs diameter is 1.2 mm. Leadwires supplied fit all right on the cartridges' terminal PINs.



Tech Spec



Dimensions and weight:
Weight incl. screws: 9.4 g
Shell length: 51.5 mm
Finger Length: 27 mm



Warranty: 2 Years
