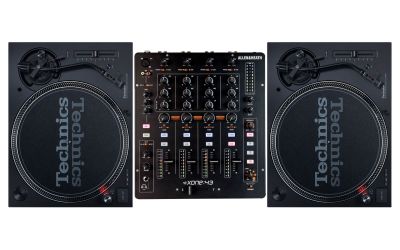

Technics SL-1210MK7

• Coreless Direct Drive Motor
• Newest digital motor control technology
• Digital pitch control improving tracking performance
• High sensitive S-shape tonearm
• High-rigidity cabinet and high-damping insulator

Overview

Coreless Direct Drive Motor Achieving Stable Rotation

The direct drive system uses a slow-turning motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. On the other hand, the direct drive system was said to produce a rotation irregularity called cogging. For the SL-1200MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimised, thus achieving high-torque-performance equaling that of the SL-1200MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

Diverse New Functions Adapt to Various Playing Styles

Torque / Brake Speed Adjustment
The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.

The Pitch Control Function
The pitch control function allows fine adjustment of the rotation speed within ±8% / ±16%. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.

Reverse Play Function
The reverse play function, which brings forth new possibilities of creative performance, makes its first appearance in the SL-1200 Series. In addition to 33-1/3 rpm and 45 rpm, a rotation speed of 78 rpm is supported.
*The torque / brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the main unit.

High Sensitive Tonearm

The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity than the SL-1200MK6. This accurately tracks the groove on the phonorecord to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Stylus Illuminator Featuring a High-brightness and Long-life White LED

The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

Power / Phono Cable Terminals

The power and phono cable terminals allow detachment of the cables. The phono terminals are gold-plated to minimise sound quality degradation. Since the terminals allow disconnection of the cables, maintenance of the cables is easier.

High-rigidity Cabinet and High-damping Insulator

The chassis, an essential part for reducing external vibrations, inherits the audio quality enhancement technology fostered through the development of high-end turntables. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fibre to achieve a two-layer construction. The combination of this special high-rigidity material and a metal chassis raised the rigidity and vibration-damping performance to higher levels, realising a robust cabinet for beautiful sound reproduction. The insulator is comprised of a spring and rubber to provide optimal frequency characteristics. This not only assures high sound quality and superb howling resistance, but also effectively shuts out external vibrations under high sound level conditions.

Tech Spec

Type
Direct Drive Manual Turntable

Turntable Speeds
33-1/3, 45 rpm (with switch 78 rpm)

Starting Torque
0.18 N・m / 1.8 kg･cm

Build-up Characteristics
0.7 s. from standstill to 33 1/3 rpm

Wow And Flutter
0.025 %　W.R.M.S.

Turntable Platter
Aluminium diecast
Diameter : 332 mm
Weight : Approx. 1.8 kg (Including slipmat and slipsheet)

Tonearm Section

Type
Universal Static Balance

Effective Length
230 mm

Overhang
15 mm

Tracking Error Angle
Within 2° 32' (at the outer groove of 30 cm record)
Within 0° 32' (at the inner groove of 30 cm record)

Offset Angle
22°

Arm-height Adjustment Range
0 - 6 mm

Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)

Head Shell Weight
Approx. 7.6 g

Applicable Cartridge Weight Range
(without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)

Head Shell Terminal Lug
1.2 mmφ 4-pin terminal lug

Terminals

Audio Output
PHONO (Pin Jack) x 1, EARTH TERMINAL x 1

General

Power Supply
AC 110 - 240 V, 50 / 60 Hz

Power Consumption
8 W
Approx. 0.2 W (Standby)

Dimensions (W x H x D)
453 x 169 x 353 mm

Weight
Approx. 9.6 kg

Accessories
Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual

Warranty: 2 Years

-

Allen & Heath XONE:43

• 4 Channels With Phono/Line Inputs
• 3-Band Isolator EQ
• External FX Loop With Dry/Wet Control Per Channel
• Independent XLR Master, and RCA Booth and Record outputs
• Touring Grade Build Quality

Overview

A 4+1 channel DJ mixer delivering the famous Xone analogue audio quality in a familiar layout for classic setups in clubs, bars and at home.

100% Analogue
Created for DJs and electronic music purists, Xone:43 is a 4+1 channel DJ mixer that offers the very best of analogue audio quality.

The 43 features the legendary Xone filter with resonance control, 3 band EQ, crossfader with three curve settings and X:FX for send/return to your favourite FX unit.

With balanced XLR main outputs, independent booth and record outputs, Xone:43 excels in the club and in high end personal DJ setups.

Analogue Isolator EQ
Each stereo channel features 3-band EQ with Total Kill on each band for precision sculpting of tracks, bassline swaps and creative transitions.

The Legendary Xone Filter
A freely assignable filter delivers all the power of the the legendary Xone VCF system with three modes – HPF, BPF and LPF – plus cutoff and resonance controls for complete control.

Add Your Favourite External FX
Xone:43 provides an FX loop with channel X:FX controls for a simple and intuitive way to integrate your favourite FX unit.

Faders For Your Mixing Style
The Xone:43’s crossfader has three switchable curve settings to suit your mixing style, and can be easily upgraded for ultimate crossfader performance.
The channel faders are designed for longevity and precision whether you’re in the club or in the lounge.

Tech Spec

4 channels with phono/line inputs
Xone:VCF filters
3-band isolator EQ
External FX loop with dry/wet control per channel
XLR mic input with 2-band EQ
Independent XLR Master, and RCA Booth and Record outputs
Touring grade build quality
Innofader compatible

Nom / max output levels
Main Mix
+4dBu +27dBu
Booth
0dBu +22dBu
X:FX Send
0dBu +20dBu
Record Out
0dBu +20dBu

Internal headroom Channels
+20dB

Frequency response
+/-0.5dB 20Hz - 20kHz

Distortion
< 0.05% THD+noise @1kHz

Crosstalk
< -83dB inter-channel

Residual noise
Mix 1 -89dBu
Booth -93dBu
X:FX -77dBu
Rec -92dBu

Mix noise
Mix 1 -82dBu
Booth -84dBu
X:FX -77dBu
Rec -87dBu

Channel meters
Peak reading 9 LED -20dB to +10dB

Main meters
Peak reading 9 LED -20dB to +10dB

Mic EQ
2-Band +/-12dB

Channel EQ
3-Band +6dB / total kill

Channel fader
45mm stereo VCA, < -85dB shutoff

Crossfader
45mm stereo VCA - replaceable

Filters
Stereo VCF, analogue

Consumption
30W max

Dimensions (W x H x D)
320 x 110 x 370 mm

Weight
Approx. 5.1 kg

Warranty: 1 Years
